How to Create Detailed Furniture Shop Drawings: Tips and Techniques

A comprehensive shop drawing serves as the definitive guide for crafting a piece of furniture. To ensure clarity and avoid costly errors, it must include the following key components:

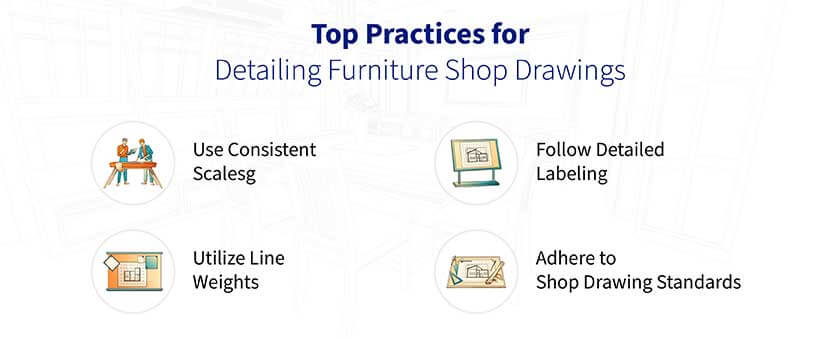

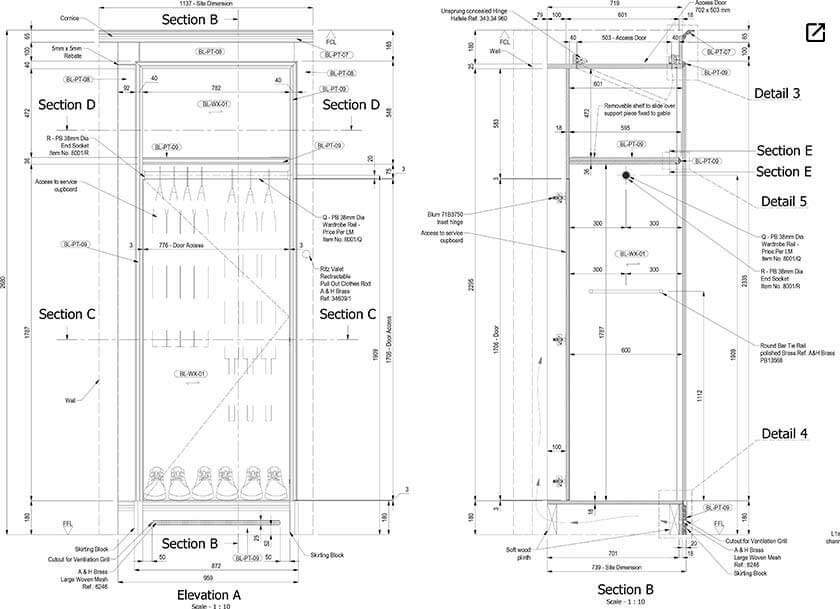

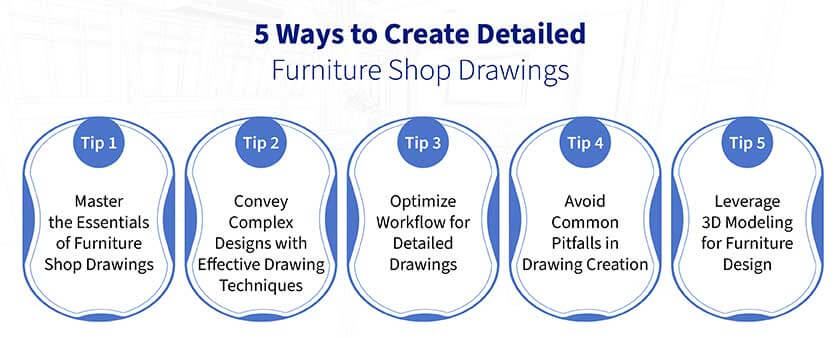

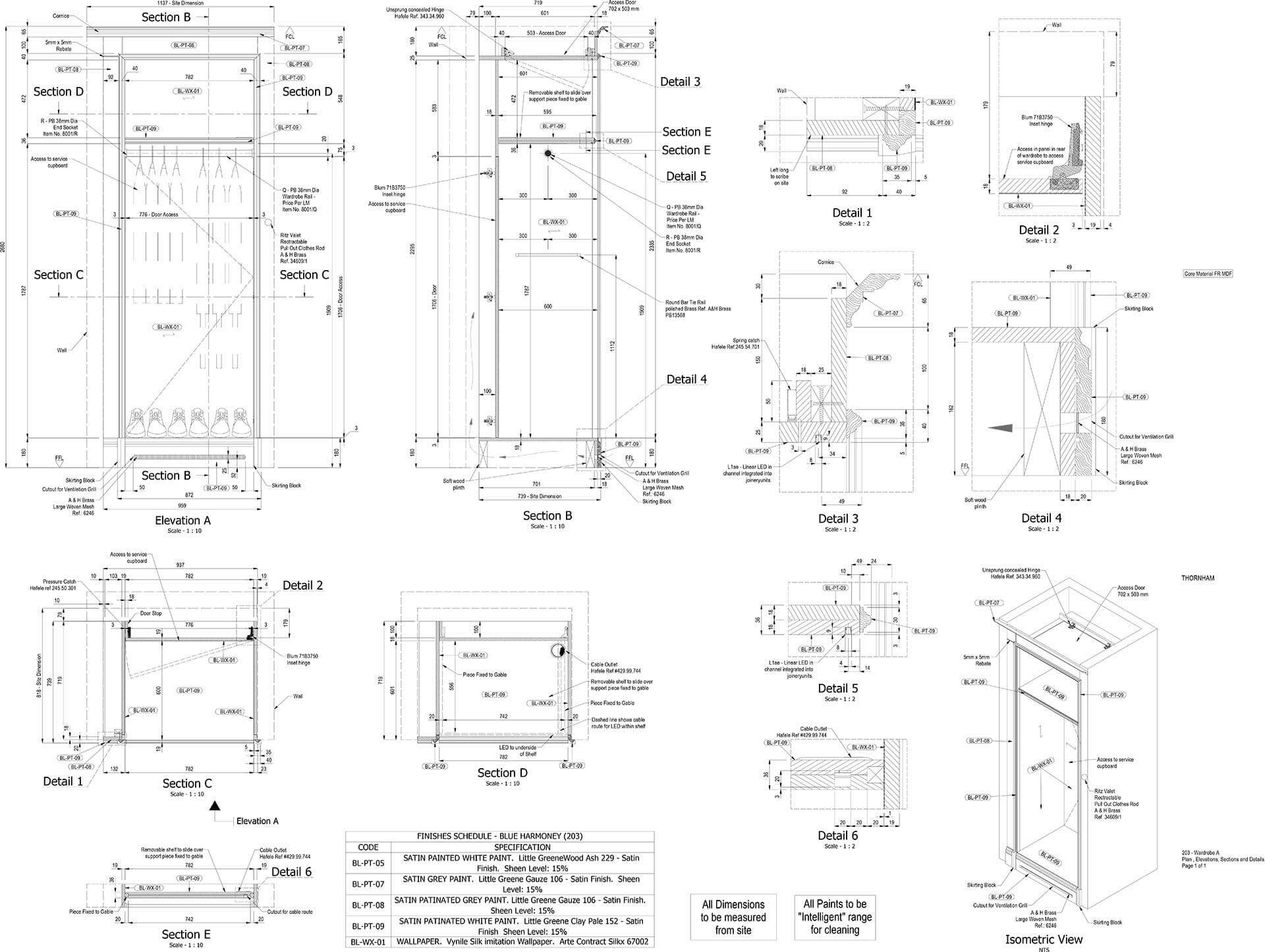

• Detailed Views: Multiple views (front, side, top and often isometric or section views) are necessary to fully capture the furniture’s form and construction. These views should clearly depict the overall dimensions, proportions and relationships between different components.
• Detailed Dimensioning: Every component, edge, joint and detail requires precise measurements clearly indicated on the drawing. This ensures that all parts are manufactured to the exact specifications required for proper fit and assembly.
• Material Specifications: Clearly specify the type, grade and thickness of the materials used for each component. This includes wood species, veneers, metals, glass or any other materials incorporated into the design.
• Hardware Details: Specify all hardware components required for assembly and function, including screws, hinges, drawer slides, handles and any other specialized hardware. Include details such as size, material and finish.
• Joinery Details: Illustrate how different components connect using clear diagrams of joinery methods. These include dovetails, mortise and tenon joints, dowel joints or any other joinery technique employed in the design.
• Finish Requirements: Specify the desired finish for all surfaces, including the type of stain, paint, lacquer or other finishing treatments. Indicate sheen levels, color codes and any special finishing techniques.
• Assembly Instructions: Provide clear step-by-step assembly instructions, including exploded diagrams, numbered sequences, or written guidelines to ensure a smooth and accurate assembly process.
• Notes and Annotations: Include any additional notes or annotations that provide further clarification or instructions for the manufacturer. This might include grain direction preferences, specific manufacturing techniques or quality control checkpoints.

By incorporating these essential elements, your shop drawings will effectively communicate your design intent and ensure accurate and efficient manufacturing.

Furniture designs often include intricate details that require careful consideration in the shop drawing process. Mastering techniques for representing complex elements is crucial to ensure accurate fabrication.

• Curves: Clearly define curved surfaces using appropriate drafting techniques. This may involve generating smooth curves with splines in CAD software, utilizing tangent lines and radii for arcs, or creating detailed section views to illustrate the curvature.
• Compound Angles: When dealing with angled components that do not align with standard axes, employ orthographic projection techniques to accurately represent the true shape and dimensions of the piece. Auxiliary views and section cuts can be particularly helpful in clarifying complex angles.
• Non-standard Shapes: For furniture with irregular or organic shapes, use detailed templates, 3D modeling, or a combination of techniques to accurately capture the design. Consider creating full-scale mock-ups or prototypes to verify complex shapes before finalizing the shop drawings.

These techniques help you ensure that even the most intricate design elements are accurately conveyed, minimizing the risk of errors.

Streamlining your design detailing process saves time and reduces the potential for errors. Here are some strategies to help you optimize your workflow:

• Leverage Digital Tools: Utilize CAD software like SolidWorks, Inventor,Cabinet Vision, 2020Design, SWood, etc., with features specifically designed for furniture design. These tools offer advantages like automated dimensioning, libraries of standard components, and the ability to generate multiple views and sections with ease.
• Create Templates and Libraries: Develop standardized templates for common furniture types and components. Build libraries of frequently used hardware, joinery details, and material specifications to streamline the drawing process and ensure consistency.
• Standardize Your Drawings: Establish consistent drawing conventions for line weights, dimensioning styles, annotation formats, and layer organization. This promotes clarity, reduces ambiguity, and makes your drawings easier to interpret.
• Use Collaboration Tools: Utilize cloud-based platforms and design collaboration tools to facilitate communication and feedback between designers, manufacturers and clients. This streamlines the review process and ensures everyone is working from the latest version of the drawings.

By implementing these workflow optimization strategies, you can create detailed shop drawings with greater efficiency and accuracy, freeing up more time for creative design exploration.

Even experienced designers fall prey to common errors in the shop drawing process. Being aware of the following pitfalls can help you avoid costly mistakes and ensure the smooth execution of your designs:

• Dimensioning Errors: Inaccurate or missing dimensions are a major source of problems in furniture manufacturing. Double-check all measurements, ensure consistency in units, and clearly indicate critical dimensions to avoid misinterpretations.
• Inadequate Joinery Details: Ambiguous or incomplete joinery details can lead to weak connections, structural instability, or aesthetic inconsistencies. Provide clear diagrams and annotations for all joinery methods, specifying glue types, fastener sizes and any special joinery techniques.
• Manufacturing Constraints: Failing to consider manufacturing limitations results in designs that are difficult to produce efficiently. Consult with manufacturers early in the design process to understand their capabilities and constraints, ensuring your designs are feasible within their production environment.
• Lack of Proper Communication: Poor communication between designers, manufacturers and clients leads to misunderstandings, errors and costly revisions. Establish clear communication channels, utilize visual aids, and encourage open dialog throughout the design and production process.
• Neglecting Grain Direction: Wood grain direction impacts the strength, stability, and aesthetics of furniture. Indicate preferred grain orientation on your shop drawings to ensure that wood components are cut and assembled in a way that optimizes their natural properties.

When designing furniture, 3D models give you a realistic visualization of the piece. This allows you to see its form, proportions and details in a virtual space. This visualization process helps you identify potential design flaws or aesthetic issues early on.

3D modeling allows you to experiment with different design options, materials and finishes. You can easily modify the model and explore variations. This lets you evaluate different design choices before you commit to a final design.

Before manufacturing, 3D modeling helps you identify potential clashes, interferences or structural issues that could become costly problems later. Software tools can perform basic collision detection to ensure your design’s integrity.

Many 3D modeling tools also automatically generate 2D shop drawings from the 3D model. These drawings include multiple views, sections and dimensioned drawings. This feature streamlines the drafting process. It also ensures accuracy between the 3D model and the shop drawings.
